BERNINA 770 QE PLUS Kaffe Edition – Let your creativity blossom

This limited edition machine features an exclusive faceplate with the acclaimed Guinea Flower fabric print by Kaffe Fassett and additional decorative stitches and embroidery designs. Furthermore, the machine comes with unique accessories and an exclusive Kaffe Fassett fabric bundle set.

These unique extras are inclusive

Dust cover in Kaffe Fassett design
Kaffe Fassett fabrics (15 half yard cuts)
Additional Kaffe Fassett decorative stitches and embroidery designs

Contact your dealer

Let your sewing studio bloom

Exclusive design by Kaffe Fassett
Inspired by the Guinea Flower fabric
With bright florals sprinkles

The faceplate is designed in an exclusive lavender-and-white patterned background with a mix of bright florals. The design was inspired by the popular Guinea Flower fabric print by Kaffe Fassett.

See for yourself

Finest stitches at any speed

Achieve perfect, equal-length stitches
Perfect results no matter which speed
Perfection comes standard

The BERNINA Stitch Regulator (BSR) guarantees precise stitch quality and perfect results at any speed during free-motion quilting.

More about the Stitch Regulator

What quilters want

A total of 74 quilting stitches
Easy-to-use BSR 3 Mode
2 or 4 stitches per inch

With the BSR 3 Mode, you will be able to set your stitch length to 2 or 4 stitches per inch for easy quilt basting. Also, take a look at the many decorative stitches which are exclusive to the Kaffe edition and were hand-drawn by him!

Overview of decorative stitches

KickStart function
for your ease

Relax your foot for more comfort
Easily control the start/stop function
Perfect when quilting for long periods of time

The KickStart function allows quilting in a continuous sewing mode without having to keep constant pressure on the foot control. The function can easily be activated or deactivated on the touch screen.

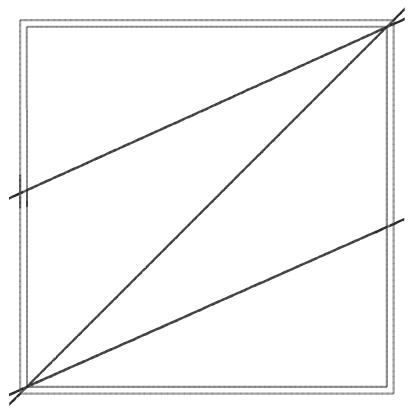

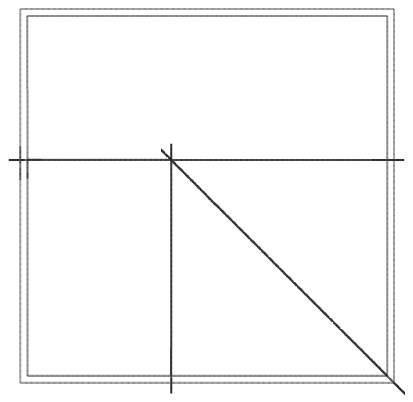

Quilting in the hoop

Create quilt patterns through embroidery
26 additional Kaffe quilting designs
Eight embroidery fonts

Browse through the unique, built-in design collection, complete with beautifully patterned quilt blocks and continuous line quilting designs all done in embroidery. The B 770 QE PLUS Kaffe Edition includes eight embroidery fonts, 339 embroidery designs with 64 designs inspired by Kaffe Fassett.

Overview of Kaffe Fassett designs

A screen beyond imagination

Extra large 7" color touch screen
Easy navigation with large symbols
Centrally & optimally located

The extra large touch screen allows you to operate the machine comfortably. Get direct tips and tricks or have short built-in tutorials show you important work steps.

HAVE A LOOK IN THE 360-DEGREE VIEWER

Pinpoint Placement and Lock function

Place your embroidery design exactly
Lock your designs during positioning
Professionally positioned designs

Place your embroidery design on the fabric exactly where you want it quickly and precisely. The new Lock function will help maintain the size of the design while you position it.

Group/Ungroup and rearrange designs

Group or ungroup designs
Rearrange designs
Both functions can be combined

Combine embroidery designs to edit all at one time with the Group feature. Break apart designs to edit individually using the Ungroup feature. Change the stitch out sequence of design layers. Use Rearrange in combination with Group and Ungroup for further editing possibilities.

Advanced embroidery module

The optional BERNINA Smart Drive Technology (SDT) module elevates your embroidery experience with enhanced stitch quality, smoother and quieter movement and up to 55% higher embroidery speed.

Learn more

Sew silk & leather like a pro

Handle special materials with ease
Enjoy superb fabric feed
Optimum visibility while sewing

The innovative BERNINA Dual Feed is easily engaged when needed and tucks completely out of the way when it’s not.

Quiet & precise

Ideally suited for decorative stitches
Sew & embroider for longer periods of time
More time for your creativity

The BERNINA Hook sews high-precision stitches up to 9 mm in width with speeds up to 1,000 stitches per minute. The bobbin holds 70% more thread than standard bobbins.

Kaffe Fassett Needlepoint designs

Multi-hooped needlepoint designs
Designs by Kaffe Fassett
Cat in a Ruff, Peony and White Dahlia

Kaffe Fassett is a passionate designer of needlepoint and provided three of his gorgeous needlepoint designs for the B 770 QE PLUS Kaffe Edition: Cat in a Ruff, Peony and White Dahlia.

Have a look at the designs

Kaffe Fassett talks about the Special Edition

“Color is the tonic the world needs.”Kaffe Fassett, Textile Artist

For more than 60 years, Kaffe Fassett has inspired people around the world with his colorful work in fabric, knitting, needlepoint, patchwork, painting and mosaic. His stunning use of color sets him apart from other artists, and a collection of his work is a must have for textile enthusiasts. BERNINA is very proud to honor Kaffe's art with the limited production BERNINA 770 QE PLUS Kaffe Edition.

Watch Video

Personal advice at your Local BERNINA Store

Over 2,000 BERNINA Stores worldwide offer valuable services to all our customers. Your local BERNINA Store is there to proudly help you, with advice on machines and accessories that best suit your needs, selection of BERNINA Embroidery Software and also in servicing your BERNINA.

Find your local store

Image Gallery: Explore the BERNINA 770 QE PLUS
Kaffe Edition

Features & Functions

Overview
Embroidery
Sewing & Quilting
General Features
Stitches

Note:
Not all models and accessories are available in all countries. We reserve the right to make changes in both features and design.

Hook system	BERNINA Hook
Sewing space to the right of the needle	254 mm
Color touch screen	7” / 18 cm
BERNINA Dual Feed (BDF)
BSR 3 mode (basting)
Exclusive machine design by Kaffe Fassett
Triple Stitch
Maximum stitch width in mm	9
Exclusive decorative stitches, inspired by Kaffe Fassett's designs	31
Exclusive Kaffe Fassett embroidery designs	64
Large Embroidery Module (SDT)	optional
WordArt

Product brochure – All information at a glance

Download now

Note:
Not all models and accessories are available in all countries. We reserve the right to make changes in both features and design.

Built-in embroidery designs	339
Exclusive Kaffe Fassett embroidery designs	64
Embroidery alphabets	8
Large Embroidery Module (SDT)	optional
Large Embroidery Module (SDT) The new BERNINA Smart Drive Technology (SDT) module elevates your embroidery experience with enhanced stitch quality, smoother and quieter movement and up to 55% higher embroidery speed.
Maximum Embroidery Speed (Stitches per minute)	1000
Maximum Embroidery Speed (Stitches per minute) Enjoy high speed for completing embroidery projects quicker.
Maximum Embroidery Area	400x210 mm
Maximum Embroidery Area Large embroidery fields reduce multiple hoopings on a project.
Freearm Embroidery
Freearm Embroidery Easy freearm embroidery with all embroidery hoops without additional tools. For embroidering tubular items such as pant legs, t-shirts, onesies, etc. We use the YouTube service to display videos. This service may collect data about your activities. For more information, please see our Privacy Policy. To view the video, please accept "Targeting cookies." Play Close
On-screen Editing of Designs
On-screen Editing of Designs Easily and quickly edit embroidery designs directly on the touch screen.
Duplicate/Add Designs
Duplicate/Add Designs Increase the number of designs quickly with duplicate. Use add to combine designs and lettering onscreen.
Change Design Size Non-Proportionally
Change Design Size Non-Proportionally Change the height and width independently. Increasing/decreasing in a range of +/- 20% provides the best results. Other ranges should be tested first.
Move, Rotate, and Mirror
Move, Rotate, and Mirror Move designs through drag and drop or the multi-function knobs; Rotate in 1 degree increments and mirror image embroidery designs for optimal placement on projects.
WordArt
WordArt Create vertical, horizontal and curved baselines. Adjust letter spacing to create the best look.
Drag and Drop
Drag and Drop Simple drag and drop allows for easy positioning of embroidery designs.
Absolute Check Design Positioning
Absolute Check Design Positioning Design placement tool – stitch by stitch. Check individual stitch locations for precise placement on the project from the Edit screen. the needle moves to that location in the hoop.
Pinpoint Placement
Pinpoint Placement For easy positioning and alignment to place embroidery designs accurately. Rotate and align designs when the project is crooked.
Scale Size of Embroidery Design
Scale Size of Embroidery Design Prevents the size of the embroidery design from being changed during positioning.
Check Design Size
Check Design Size Tool for placing designs. Check the embroidery design size. The center of the pattern can also be displayed.
Group/Ungroup
Group/Ungroup Objects can be easily grouped and edited at the same time. Depending on the design, it can be split using the ungroup function in order to edit or delete individual parts. We use the YouTube service to display videos. This service may collect data about your activities. For more information, please see our Privacy Policy. To view the video, please accept "Targeting cookies." Play Close
Rearrange designs
Rearrange designs Change the stitching order of designs by changing the order of the layers.
Adjust Stitch Density
Adjust Stitch Density Change Stitch Density to complement varied fabric.

Product brochure – All information at a glance

Download now

Change Stitch Type
Change Stitch Type Change a satin stitch to a fill stitch to minimize long satin stitches that may catch.
Change Thread Brand
Change Thread Brand Quickly change thread color and/or brand on-screen to suit your project at hand.
Basting
Basting Stitch your choice of basting stitches before embroidering. Choose to baste around your design or the inner hoop.
Color Resequence
Color Resequence Several identical colors of an embroidery design are combined into one color, thus reducing the number of color changes to a minimum. Saves time.
Stitch Design as Single/Multi-Color
Stitch Design as Single/Multi-Color Stitch an entire design in one color without stopping or as a multi-color design.
Personal Memory for Saving Embroidery Designs
Personal Memory for Saving Embroidery Designs Own combinations, altered embroidery designs or external designs can be stored.
Programmable Jump Stitch Cutting
Programmable Jump Stitch Cutting Set any length of jump stitches to be cut and eliminate manual cutting.
Smart Secure
Smart Secure Missing tie-on/off stitches are added automatically if none were programmed.
Invisible Secure
Invisible Secure Enhanced tie-on/off stitch formation is completely invisible under design.
Centering the Embroidery Design
Centering the Embroidery Design Off-center design positioning can be saved to the machine and design position in hoop is imported as set in the BERNINA Embroidery Software.
Thread Away Mode
Thread Away Mode An automatic, quick movement of the hoop ensures thread tails are transferred to the wrong side of the project. Set on/ off as desired depending on design.
Switch Unit of Measurement
Switch Unit of Measurement Choose to view embroidery design dimensions and hoop sizes in inches or millimeters.
Embroidery design formats	EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
USB Interface
USB Interface Enjoy rapid and direct connectivity for design transfer and updates.
Automatic hoop recognition
View Stitch-out Time, Thread Colors, Size, Stitches
View Stitch-out Time, Thread Colors, Size, Stitches View design details at a glance.
Stitch Sequence Control
Stitch Sequence Control This function helps to reposition the embroidery position after a thread breakage. You can move forward or backward stitch-by-stitch or in steps of 50.
Position Recall
Position Recall The last embroidered stitch is always saved so that embroidery can be resumed at exactly the same point in the project in case of a power failure.
Jumbo hoop functionality (limited embroidery field: 400×210 mm, 15.7"×8.3")

Pattern start/end function
Triple Stitch
Elongation
Stitch length maximum in mm	6
Maximum stitch width in mm	9
Programmable Securing Function
Pattern mirroring
Free Hand System (FHS)
Number of stitch patterns (incl. alphabet) total	1840
Utility stitches total	38
Buttonholes (incl. eyelet) total	18

Product brochure – All information at a glance

Download now

Automatic buttonhole length measuring system
Automatic buttonhole
Manual multi-step buttonhole
Button sew-on program
Darning programs	2
Decorative stitches total	531
Quilting stitches total	74
Cross-stitch programs	41
Sewing alphabets	9
Reverse sewing
Exclusive decorative stitches, inspired by Kaffe Fassett's designs	31

Hook system	BERNINA Hook
Hook system The Hook systems of BERNINA sewing machines are constantly evolving over the years. The CB Hook is the traditional BERNINA mechanism that produces the legendary BERNINA stitch quality at 5.5 mm wide. The BERNINA Rotary Hook offers the same stitch quality at 9 mm stitch width and bobbin thread monitoring. The innovative BERNINA Hook maintains the stitch quality at 5.5 mm and 9 mm stitch widths. An easy bobbin case insertion and large capacity bobbin make this ideal. The M Class BERNINA Rotary Hook for Longarm machines ensures the legendary BERNINA stitch quality, even at high speeds.
Maximum sewing speed (stitches per minute)	1000
Sewing space to the right of the needle	254 mm
Color touch screen	7” / 18 cm
Drag & Drop
LED sewing lights	30 LED
LED sewing lights Bright illumination in the needle area and over the free arm. The brightness is adjustable.
Multi-function knobs
Needle positions	11
Sewing in each needle position
Number of spool holders	2
Semi-automatic needle threader
Automatic presser foot lift
Adjustable presser foot pressure
Automatic presser foot pressure
Manual thread cutter	3
Automatic thread cutter
Pivot / hover function
BERNINA Dual Feed (BDF)
Adaptive Thread Tension
Upper thread indicator
Lower thread indicator
BSR functionality, straight stitch and zigzag
BSR 3 mode (basting)

Product brochure – All information at a glance

Download now

Programmable BERNINA foot control
Create and save stitch combinations
Memory (short-term/altered stitches)
Memory (long-term/altered stitches)
Start/stop button (stitching without foot control)
Slide speed control
Bobbin winding while sewing/embroidering
USB interface for PC connection
USB interface for USB data stick
Changing stitch settings while sewing
Needle stop up/down
On-screen help
Creative consultant
Sewing tutorial
Embroidery tutorial
Personal program
History function (most-recently-used stitch patterns)
Setup program
Eco mode
Machine weight	14 kg
Machine size	522 / 214 / 358 mm
Exclusive machine design by Kaffe Fassett

Practical Stitches
Buttonholes
Decorative Stitches
Quilt Stitches

Accessories

Unleash your creativity with the included accessories and be prepared for any creative challenge with a huge variety of optional accessories

Included
Compatible

Standard accessories BERNINA 770 QE PLUS Kaffe Edition

Here you will find an overview of the standard accessories for the BERNINA 770 QE PLUS Kaffe Edition.

Learn more

BERNINA Stitch Regulator (BSR)

The BERNINA Stitch Regulator (BSR) adapts precisely to your current sewing speed to produce absolutely consistent stitching.

Learn more

Reverse Pattern Foot #1C

Reverse Pattern Foot #1C is the ideal presser foot for sewing forward and reverse-feed utility and decorative stitches.

Learn more

Reverse Pattern Foot #1D

Reverse Pattern Foot #1D is the ideal presser foot for sewing forward and reverse-feed utility and decorative stitches.

Learn more

Buttonhole Foot with Slide #3A

Depending on the model, Buttonhole Foot with Slide #3A determines the desired buttonhole length for identical buttonholes either via a sensor or manually.

Learn more

Zipper Foot #4D

Thanks to its narrow, centrally positioned toe, Zipper Foot #4D can stitch very close to the zipper coils, allowing it to sew the zipper on neatly.

Learn more

Open Embroidery Foot #20C

Open Embroidery Foot #20C is ideal for embroidering with your sewing machine. The indentation in the sole of the presser foot allows it to glide smoothly over dense stitches.

Learn more

Patchwork Foot #97D

The Patchwork Foot #97D is ideal for patchworking and other exact work.

Learn more

Freearm Slide-on Table

The BERNINA Freearm Slide-on Table offers greater comfort thanks to an increased sewing area, without affecting free-arm function when sewing.

Learn more

Knee lifter/Free-Hand System (FHS)

The Knee lifter/Free-Hand System (FHS) lets you raise the presser foot and lower the feed dog with your knee. Recommended particularly for appliqué or any project requiring pivoting and getting bulky projects under the presser foot easily.

Learn more

Touchscreen Pen for 7 and 8 Series

The Touchscreen Pen – ideal for working on the touch screens on BERNINA sewing and embroidery computers. Operate the touch screen by gently tapping it.

Learn more

Sewing Machine Oil

Regular care ensures that your Sewing Machine runs smoothly. This also includes oiling.

Learn more

BERNINA Accessory Box

The practical Accessory Box can be used to store all Sewing Accessories, such as Presser Feet, Needles and Bobbins. The Accessory Box is supplied without contents.

Learn more

Small Embroidery Hoop

The Small Embroidery Hoop is a whiz at embroidering tubular items such as sleeves or pant legs.

Learn more

Medium Embroidery Hoop

The Medium Embroidery Hoop is a useful tool for the accurate embroidering of medium-sized projects with the BERNINA embroidery machine.

Learn more

Large Oval Embroidery Hoop

The Large Oval Embroidery Hoop is suitable for both design combinations and extensive embroidery designs. The template makes quick work of accurately positioning the project in the hoop.

Learn more

Show all Hide all

Presser feet for every occasion

BERNINA presser feet stand for precision and stability. They are easy to change and BERNINA has a suitable presser foot for every application.

See all

Accessories for Sewing Machines

BERNINA Sewing accessories let you perform a host of creative techniques with even greater precision and comfort – according to your individual needs.

See all

Accessories for Embroidery Machines

BERNINA’s accessories for embroidery machines turn your embroidery machine into a versatile tool for exciting professional embroidery techniques.

See all

Note:
Not all models and accessories are available in all countries. We reserve the right to make changes in both features and design.
